Virtual Clamping

Explore Virtual Clamping

Less effort, lower costs: Virtual Clamping

Virtual Clamping in our 3D metrology software simulates the clamping of parts and allows the user to compute the clamped state using the data of the real part in free state. This step is fully integrated into workflow of ZEISS INSPECT and you do not have to leave the proven software interface.

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
Your Benefits of Virtual Clamping

Your benefits of Virtual Clamping

With virtual clamping, you reduce the costs for fixtures. The multiple design and manufacture of fixtures for individual process steps is no longer necessary. The entire surface is freely accessible for the measurement. You obtain reliable test results that are significantly less influenced by the user and allow for higher repeatability.

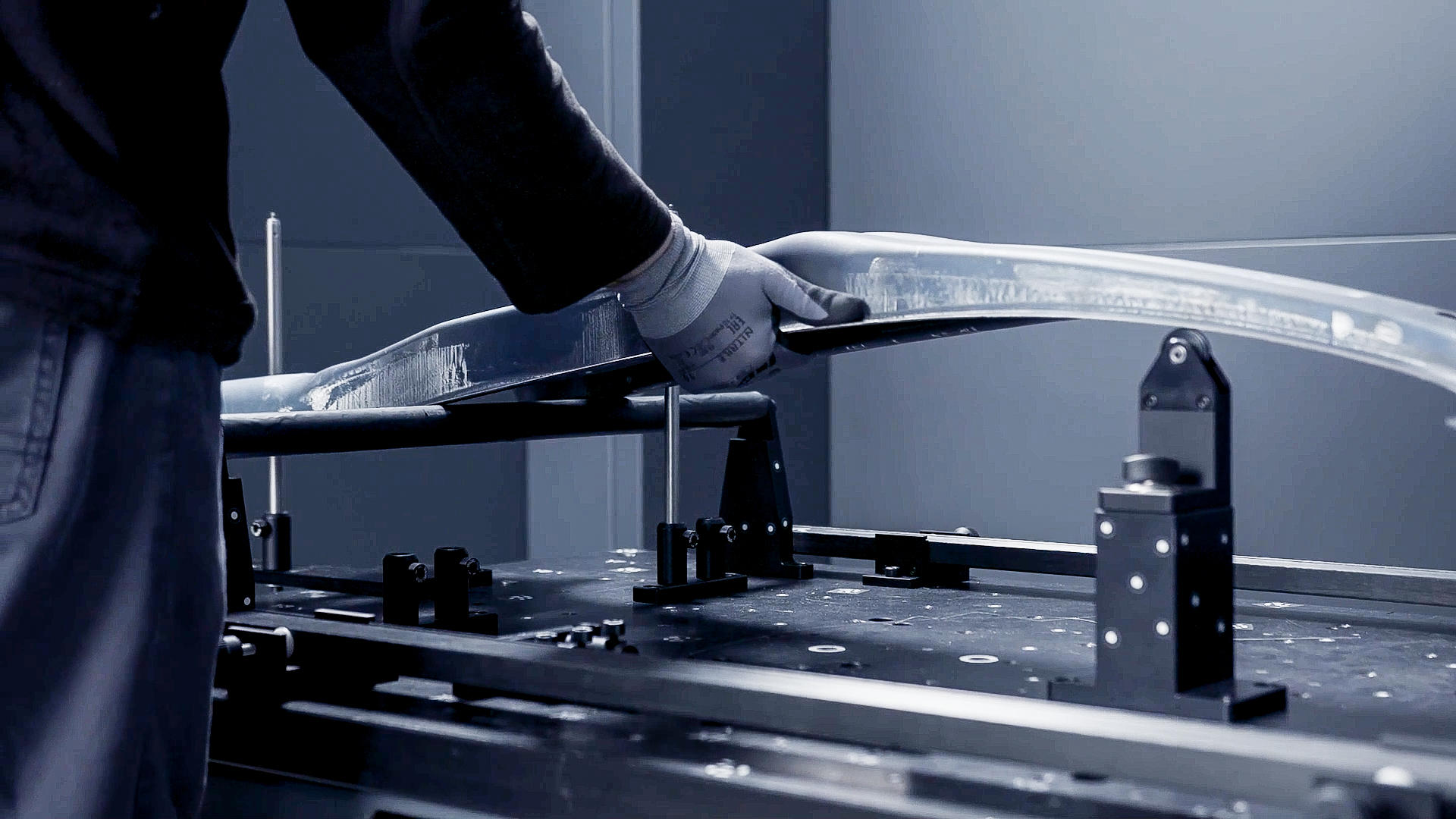

Easy Measurement of Hot Formed Parts

Easy measurement of hot formed parts

Using a universal setup and the ScanBox 3D measuring machine help you to get rid of individual fixtures and to accelerate your production processes.

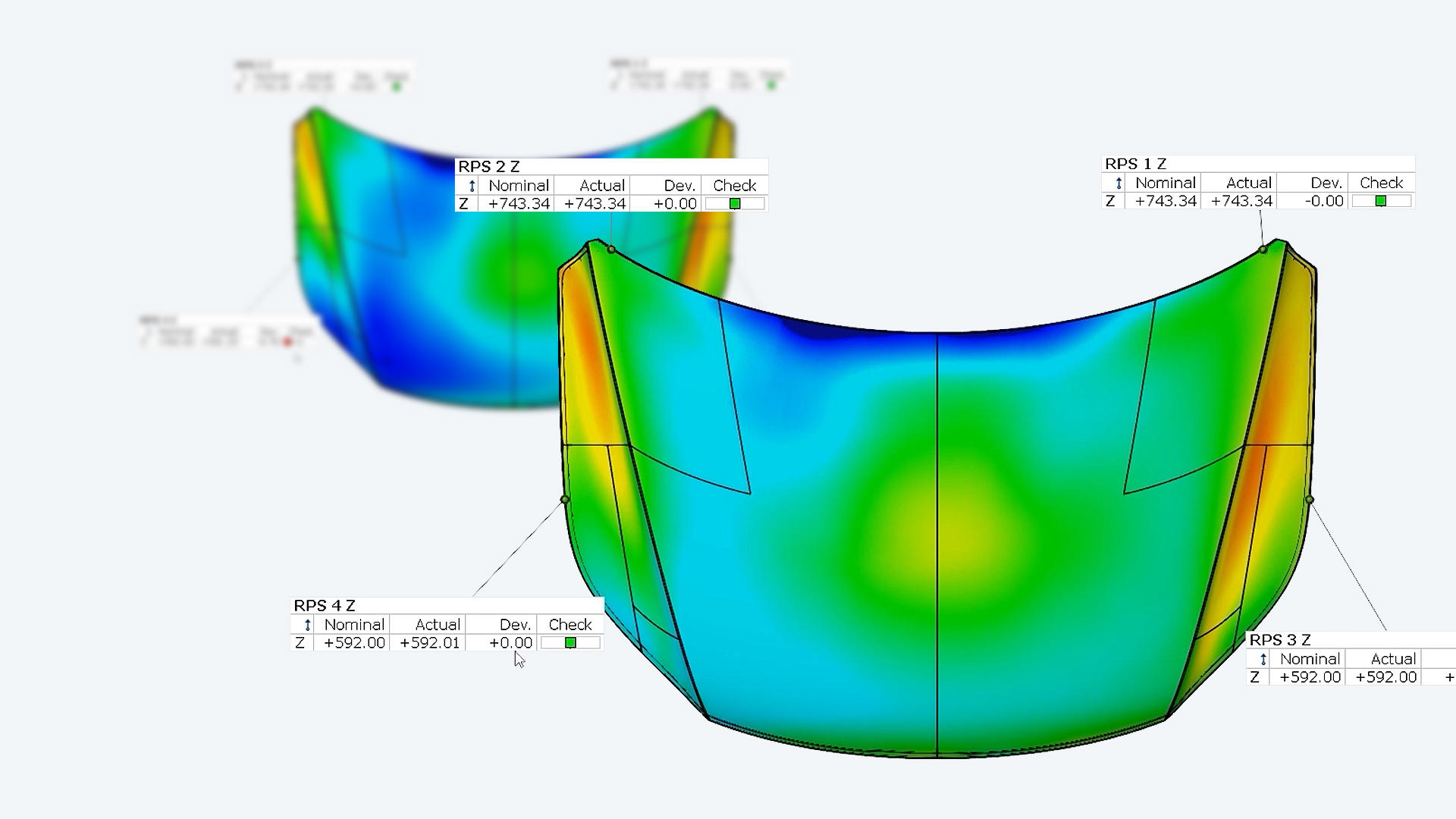

Virtual Clamping for hang-on parts

Virtual Clamping technology avoids multiple measurement loops for parts that are typically measured on mechanical fixtures with four support points.

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

More possibilities

The Virtual Clamping module in our 3D metrology software extends the range of applications for virtual clamping to add-on parts such as doors or flaps of vehicles. Furthermore, users can display both the free and clamped state on one report page without having to measure twice.

Pneumatic fixture

We have developed the Universal Pneumatic Device for gravity compensation that allows users to place parts, especially sheet metal parts, in free state and thus to prepare them for the subsequent virtual clamping process.

Even more ZEISS INSPECT functions

We have clearly summarized the most popular functions of ZEISS INSPECT for you here:
From CAD import to various inspections and reporting. Do you already know them all?

Learn more

Schedule a demo at a ZEISS Quality Excellence Center near you

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

ZEISS Quality Excellence Centers in Southeast Asia provide hands-on access to the latest metrology solutions, including CMMs, 2D X-ray systems, 3D X-ray (computed tomography - CT) systems, light microscopes, digital microscopes, scanning electron microscopes and optical 3D scanners. Whether you need a live demo with your own parts or expert measurement services, our specialists are ready to support your quality assurance needs.

We have ZEISS Quality Excellence Centers in Malaysia, Thailand and Vietnam. We can also support your demo, training, measurement and inspection needs in Singapore, Indonesia and Philippines at our partners' sites.
