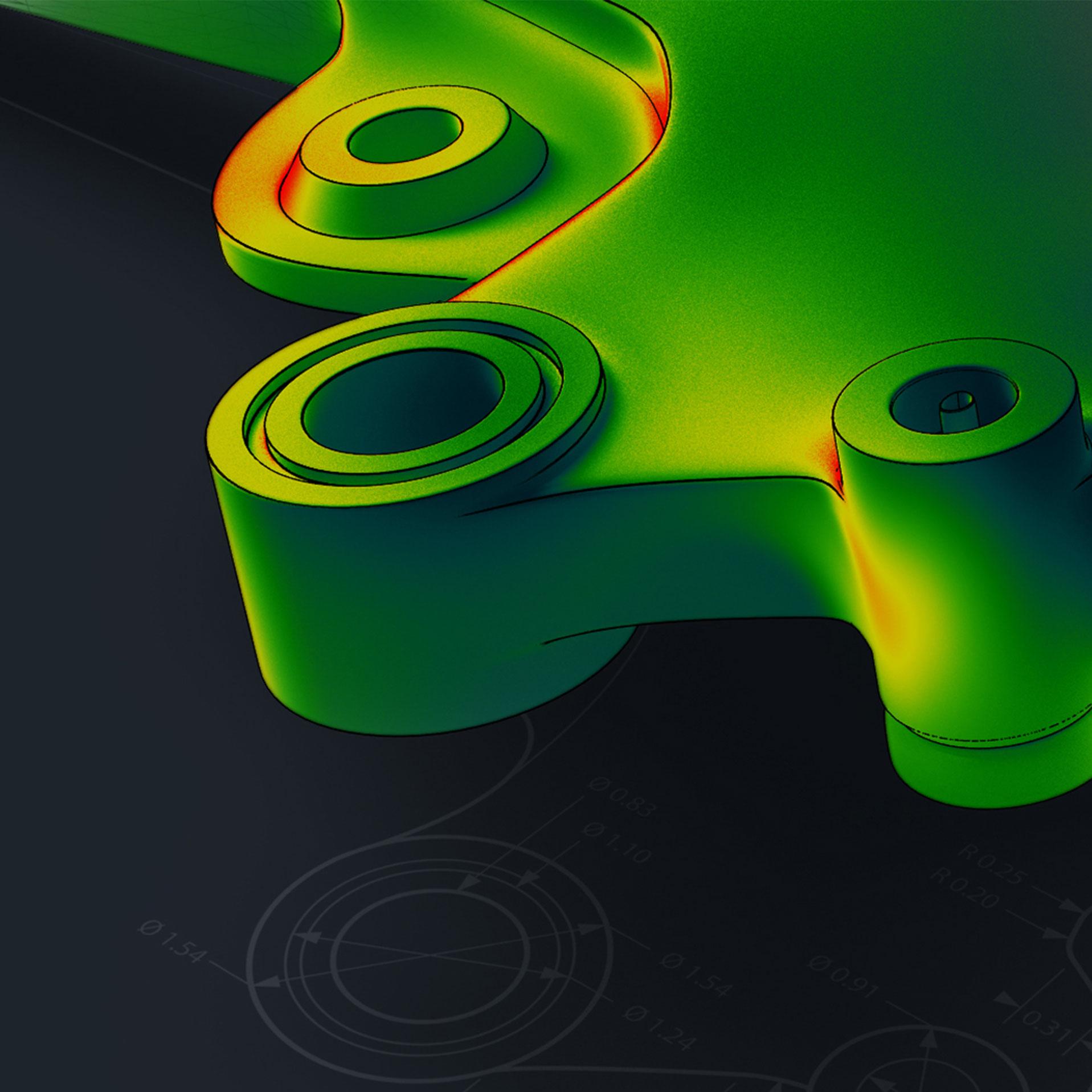

ZEISS INSPECT Optical 3D

ZEISS INSPECT Optical 3D

The standard for your 3D surface inspection

Take your inspection tasks to a whole new level. From full-field data acquisition and mesh processing to trend analyses and digital assembly, ZEISS INSPECT supports you with a consistent workflow and user-centric operation – no matter which optical measuring system you use. Easily create digital twins for a comprehensive and detailed analysis to ensure fast and precise results.

Start now
  • Powerful metrology functions – intuitive and fast​
  • Automated programming and inspection made easy​
  • Streamlined workflow for ZEISS optical measuring systems
ZEISS INSPECT Optical 3D
Start now

The highlights of ZEISS INSPECT Optical 3D​

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
Geometric dimensioning and tolerancing

Identify deviations quickly and easily

Use ZEISS INSPECT to analyze GD&T. The software takes care of the technical details in the background and incorporates the international standards. In combination with PMI data import, this is how GD&T inspection works in a simple way.

Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

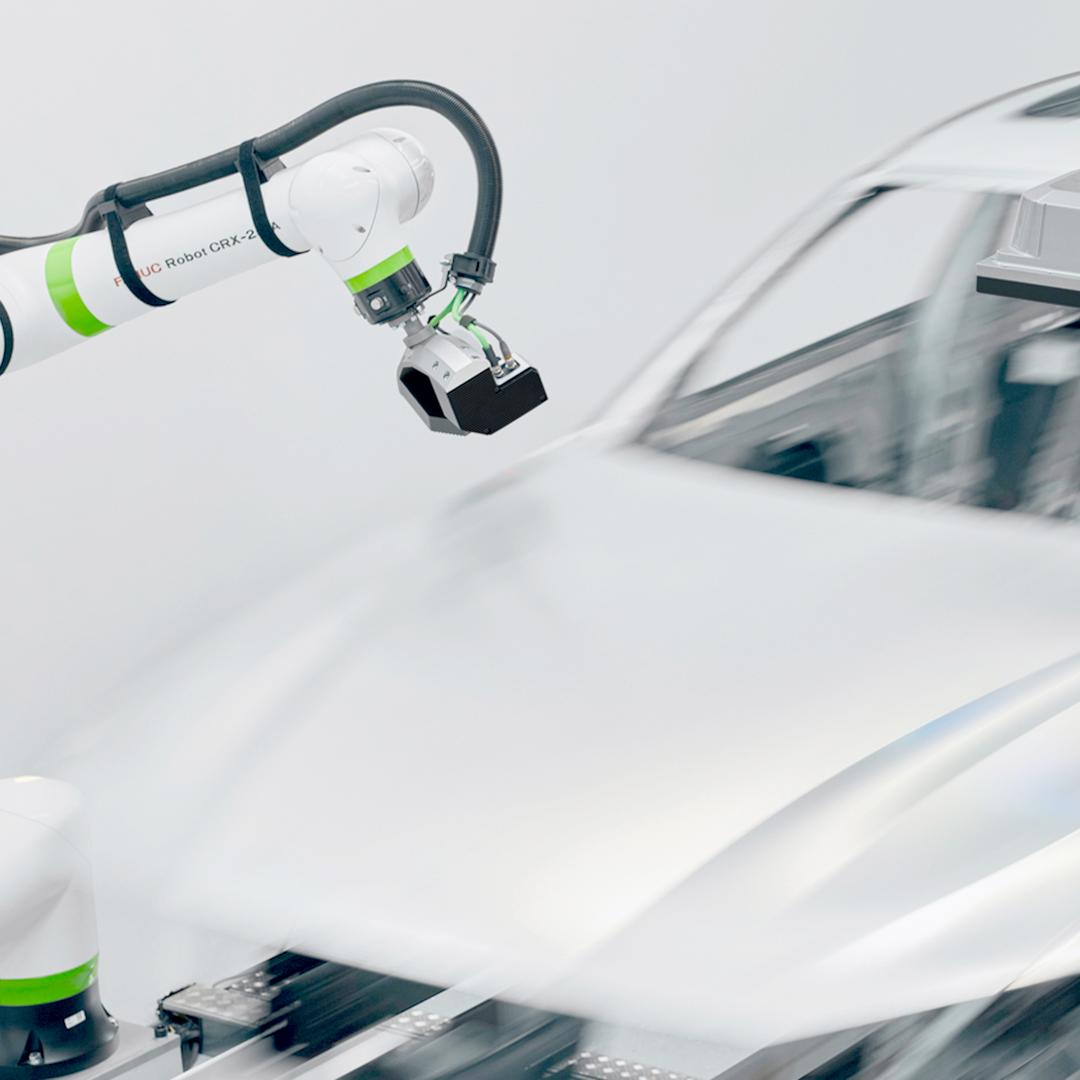

Virtual Measuring Room (VMR)​

Leverage productivity with automated measuring cells​

The Virtual Measuring Room (VMR) enables automatic measuring procedures and represents the real environment in a virtual simulation. Optimize your measurement planning and automate robot programming and reporting processes without a teach pendant. No special robot skills required.​

Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
Virtual Clamping​

Simulate the clamped state of parts – save time and space​

Measure clamping conditions without any fixtures and increase your efficiency and cost-effectiveness. The software calculates the clamped condition of your parts and makes both the design and creation of fixtures superfluous – freeing up your storage space.​

From 2D drawings to report visualization with ZEISS INSPECT Optical 3D
Reporting

Your results impressively visualized

Easily create your individual reports using images, tables, diagrams, texts, and graphics in ZEISS INSPECT. Also use the presentation mode or PDF export – even with videos.​

What’s New in ZEISS INSPECT Optical 3D 2025?​

Learn about the highlights and improvements in the latest software version.​ Simply log-in or create a ZEISS ID.

Watch the video

Selected features at a glance​

ZEISS INSPECT Optical 3D accompanies you with powerful features throughout the entire workflow. Find some of them below, but be sure to dive into the full scope of functionalities:​

Discover all functions​

  • Digital assembly​

    Assemble your parts digitally – no matter where they were manufactured. Thus, you will save valuable time in quality assurance and efficiently reduce the amounts of waste materials.​

  • Surface defect detection​

    With assisted defect inspection tools, ZEISS INSPECT detects quality issues automatically and categorizes them, revealing even smallest defects quickly and efficiently.​

  • Mesh editing​

    From a 3D point cloud to a polygon mesh: this happens quite automatically. The software also helps with smoothing and filling holes.​

Extended functions with apps

  • Airfoil Inspection​

    Analysis of blades and airfoils​
    Airfoil Inspection with ZEISS INSPECT

    With specific analysis functions and useful 2D and 3D evaluation features for turbines and blade wheels, Airfoil Inspection sets new standards in the visualization and evaluation of measurement data.​

    • Digital analysis of the throat area in 3D ​
    • Virtual Balancing: Define the ideal order of blades before assembly​
    • Waviness inspection: Analyze the quality of the final produced part​
    Learn more

  • INSPECT PiWeb Reporting Plus​

    Reporting and statistics​
    Enhanced reporting with PiWeb Reporting Plus in ZEISS INSPECT

    With INSPECT PiWeb Reporting Plus, you expand the reporting possibilities of ZEISS INSPECT by organizing and visualizing your quality data according to your needs.​

    • Track production quality across all measuring machines​
    • Interactive reporting ​
    • Integration into a PiWeb database possible

  • Tube Check​

    Determination of bending correction parameters

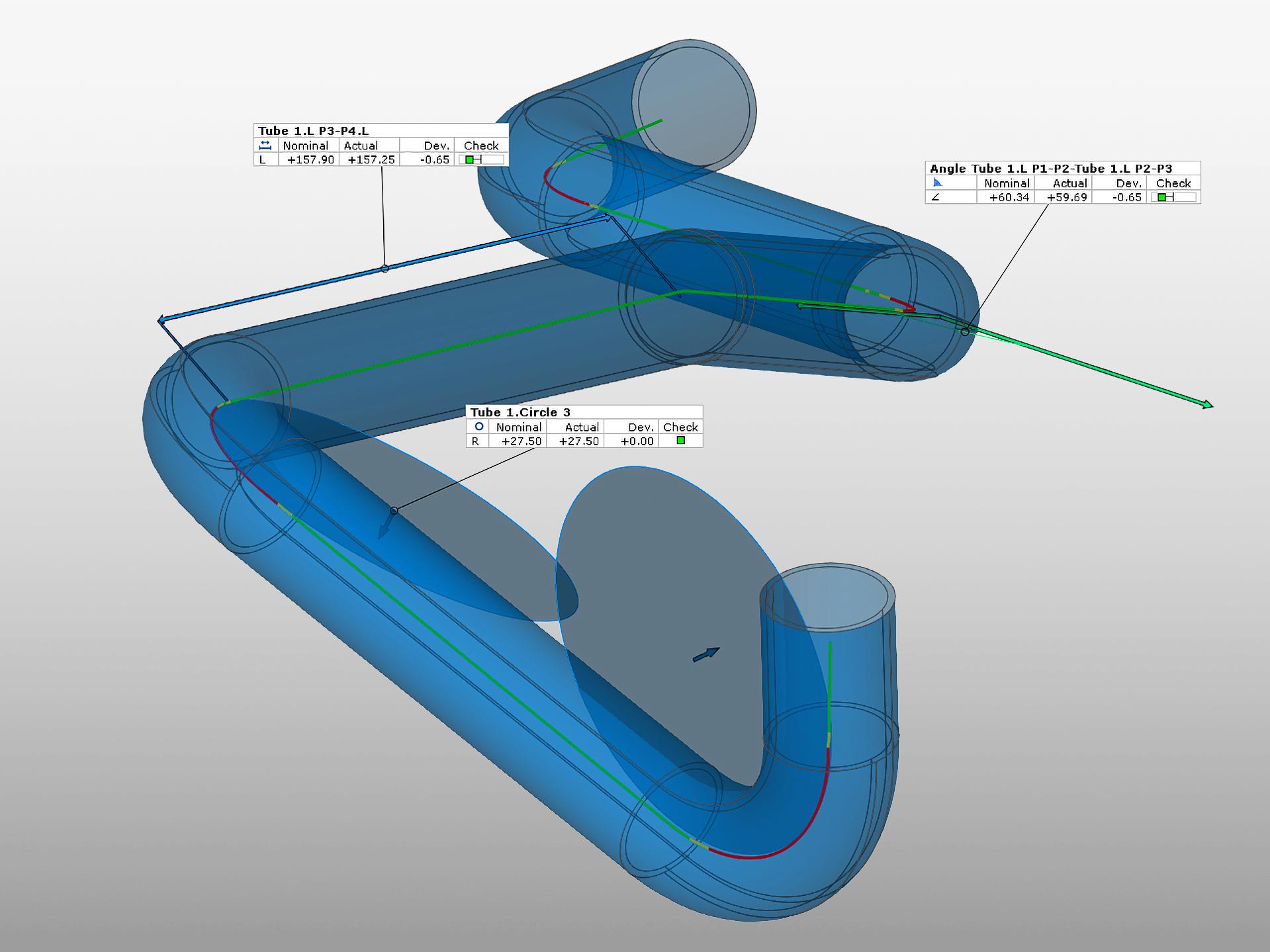

    Determination of bending correction parameters with Tube Check for ZEISS INSPECT

    Tube Check determines the correction parameters of a complete tube fully automatically with just a few clicks. Visualization of the deviation is interactive and adjustable.

    • Efficient due to automated acquisition of the entire tube​
    • Analysis of roundness along the entire tube
    • Inspection of wrinkling in the bending areas
View more apps

Get started now with ZEISS INSPECT Optical 3D

Find the perfect introduction to ZEISS INSPECT for optical 3D metrology. Whether just the free license, the purchase or a trial of the pro version – it’s up to you. ​
  • FREE LICENSE​

    Enjoy the free license​

    Get access to all free features​

    If you have already tested the pro version or want to use a long-term license, the free license of ZEISS INSPECT Optical 3D offers you all functions for the most common evaluations. Free of charge and without detours.​

    Get the free license

    What you can expect:

    • Use the basic features of the software​
    • No cancellation necessary​
    • Easily upgrade to the powerful pro version​
  • Purchase

    Get the powerful pro version​

    Request and get started​

    Are you already convinced of ZEISS INSPECT Optical 3D and want to get started right away? Contact us to request a quotation and get the pro version of the software.​

    Request now

    Take your inspections to a new level:​

    • Full access to all features, updates and support
    • Access all apps and build your own apps​
    • Easy programming for automation​
    • Customize with python scripting​
  • PRO TRIAL​

    Try out the software​

    30 days, free of charge​

    Would you like a trial of the pro version to help you decide? We offer you 30 days access to all ZEISS INSPECT Optical 3D features. After the trial period expires, you can activate the free license with limited functions or choose to get the powerful pro version.​

    Get a trial

    Your trial of the pro version:​

    • 30 days free of charge​
    • No cancellation necessary​
    • Full access to all features and over 100 free apps​
    • Activate the free license or get the powerful pro version after the end of the trial period ​
    • Accompanying training and services in the ZEISS Quality Suite​
System requirements
  • Philipp Alender

    All individual parts are scanned and evaluated in ZEISS INSPECT. We definitely prefer optical measurement technology for measurements during production. For the simple reason that this is much faster and we can react more quickly to changes in the part – for example, warpage or minor corrections.

    Philipp Alender Head of Metrology in the Quality Assurance department at Hansgrohe
  • Frank Sears

    We were able to hit our target of 24 pieces per batch and can inspect three times as many features in a third of the time for the entire product family. The operators on the floor really enjoy the software and what it has to offer, and we’re able to communicate exactly what is going on to other departments.​

    Frank Sears Lead Quality Engineer at Orchid Orthopedic Solutions​
  • Chris Tinker

    ZEISS INSPECT stands out as one of the most powerful software solutions in the world. We run batches of parts simultaneously and have effectively minimized downtime in the process. It’s easy to implement and the features are easy to use.​

    Chris Tinker Layout Metrology Engineer ​at Hitchinger​
