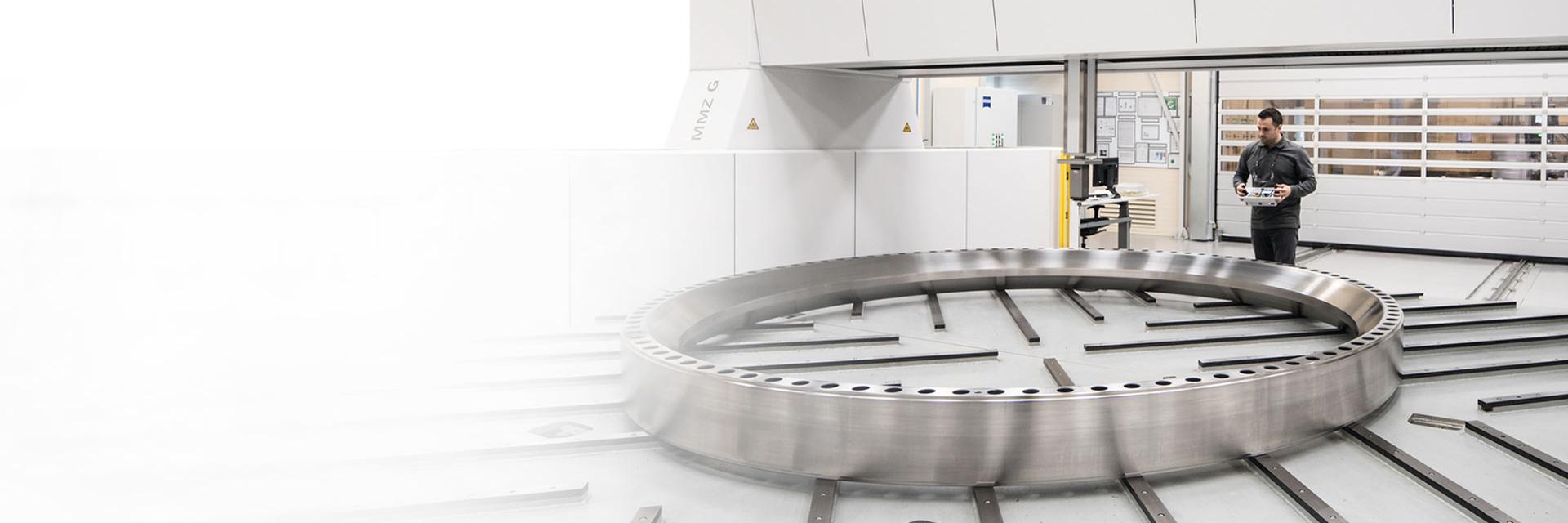

Large Coordinate Measuring Machines
Reliable testing of large components
Quality assurance of large components with the ZEISS MMZ family
Coordinate measuring machines with a large measuring range and high load capacity are essential in various sectors such as energy and power generation, mechanical engineering and aerospace. The products of the ZEISS MMZ family can be configured in various sizes and thus guarantee the measurement of the largest workpieces - without compromising on precision.
![MMZ 1 table]({"xsmall":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.100.75.1181,900,6406,4819.file/mmz-1-table_full.png","small":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.360.270.1181,900,6406,4819.file/mmz-1-table_full.png","medium":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.768.576.1181,900,6406,4819.file/mmz-1-table_full.png","large":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.1024.768.1181,900,6406,4819.file/mmz-1-table_full.png","xlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.1280.960.1181,900,6406,4819.file/mmz-1-table_full.png","xxlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.1440.1080.1181,900,6406,4819.file/mmz-1-table_full.png","max":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.1920.1440.1181,900,6406,4819.file/mmz-1-table_full.png"} "MMZ 1 table")
![MMZ T]({"xsmall":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/mmz-t_4-3.jpg/_jcr_content/renditions/original.image_file.100.75.105,81,1797,1352.file/mmz-t_4-3.jpg","small":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/mmz-t_4-3.jpg/_jcr_content/renditions/original.image_file.360.270.105,81,1797,1352.file/mmz-t_4-3.jpg","medium":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/mmz-t_4-3.jpg/_jcr_content/renditions/original.image_file.768.576.105,81,1797,1352.file/mmz-t_4-3.jpg","large":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/mmz-t_4-3.jpg/_jcr_content/renditions/original.image_file.1024.768.105,81,1797,1352.file/mmz-t_4-3.jpg","xlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/mmz-t_4-3.jpg/_jcr_content/renditions/original.image_file.1280.960.105,81,1797,1352.file/mmz-t_4-3.jpg","xxlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/mmz-t_4-3.jpg/_jcr_content/renditions/original.image_file.1440.1080.105,81,1797,1352.file/mmz-t_4-3.jpg","max":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/mmz-t_4-3.jpg/_jcr_content/renditions/original.image_file.1692.1269.105,81,1797,1352.file/mmz-t_4-3.jpg"} "MMZ T")
![MMZ M]({"xsmall":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-m/mmz-m_4-3.jpg/_jcr_content/renditions/original.image_file.100.75.101,59,1805,1339.file/mmz-m_4-3.jpg","small":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-m/mmz-m_4-3.jpg/_jcr_content/renditions/original.image_file.360.270.101,59,1805,1339.file/mmz-m_4-3.jpg","medium":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-m/mmz-m_4-3.jpg/_jcr_content/renditions/original.image_file.768.576.101,59,1805,1339.file/mmz-m_4-3.jpg","large":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-m/mmz-m_4-3.jpg/_jcr_content/renditions/original.image_file.1024.768.101,59,1805,1339.file/mmz-m_4-3.jpg","xlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-m/mmz-m_4-3.jpg/_jcr_content/renditions/original.image_file.1280.960.101,59,1805,1339.file/mmz-m_4-3.jpg","xxlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-m/mmz-m_4-3.jpg/_jcr_content/renditions/original.image_file.1440.1080.101,59,1805,1339.file/mmz-m_4-3.jpg","max":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-m/mmz-m_4-3.jpg/_jcr_content/renditions/original.image_file.1704.1278.101,59,1805,1339.file/mmz-m_4-3.jpg"} "MMZ M")
![MMZ G]({"xsmall":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/mmz-g_4-3.jpg/_jcr_content/renditions/original.image_file.100.75.file/mmz-g_4-3.jpg","small":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/mmz-g_4-3.jpg/_jcr_content/renditions/original.image_file.360.270.file/mmz-g_4-3.jpg","medium":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/mmz-g_4-3.jpg/_jcr_content/renditions/original.image_file.768.576.file/mmz-g_4-3.jpg","large":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/mmz-g_4-3.jpg/_jcr_content/renditions/original.image_file.1024.768.file/mmz-g_4-3.jpg","xlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/mmz-g_4-3.jpg/_jcr_content/renditions/original.image_file.1280.960.file/mmz-g_4-3.jpg","xxlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/mmz-g_4-3.jpg/_jcr_content/renditions/original.image_file.1440.1080.file/mmz-g_4-3.jpg","max":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/mmz-g_4-3.jpg/_jcr_content/renditions/original./mmz-g_4-3.jpg"} "MMZ G")

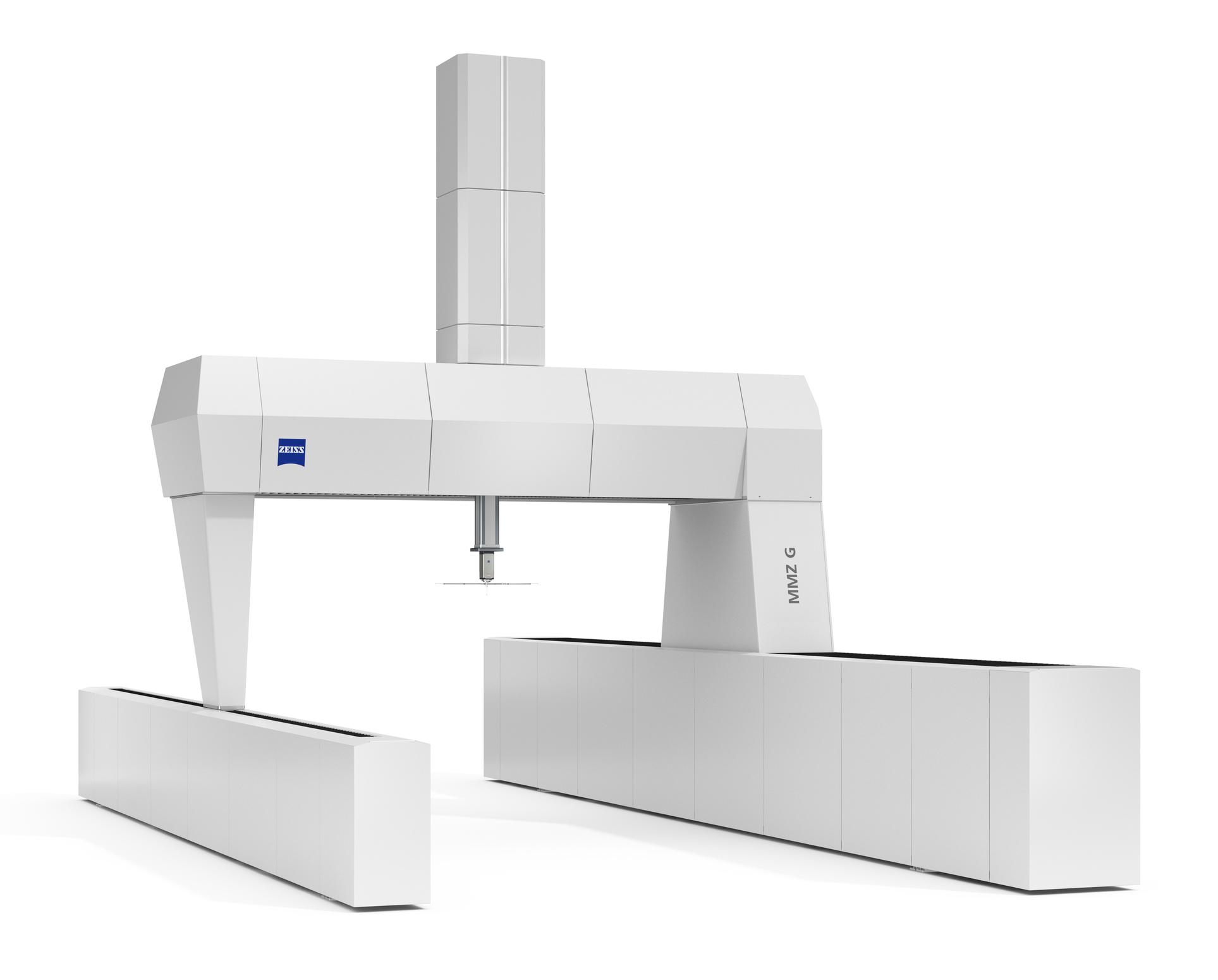

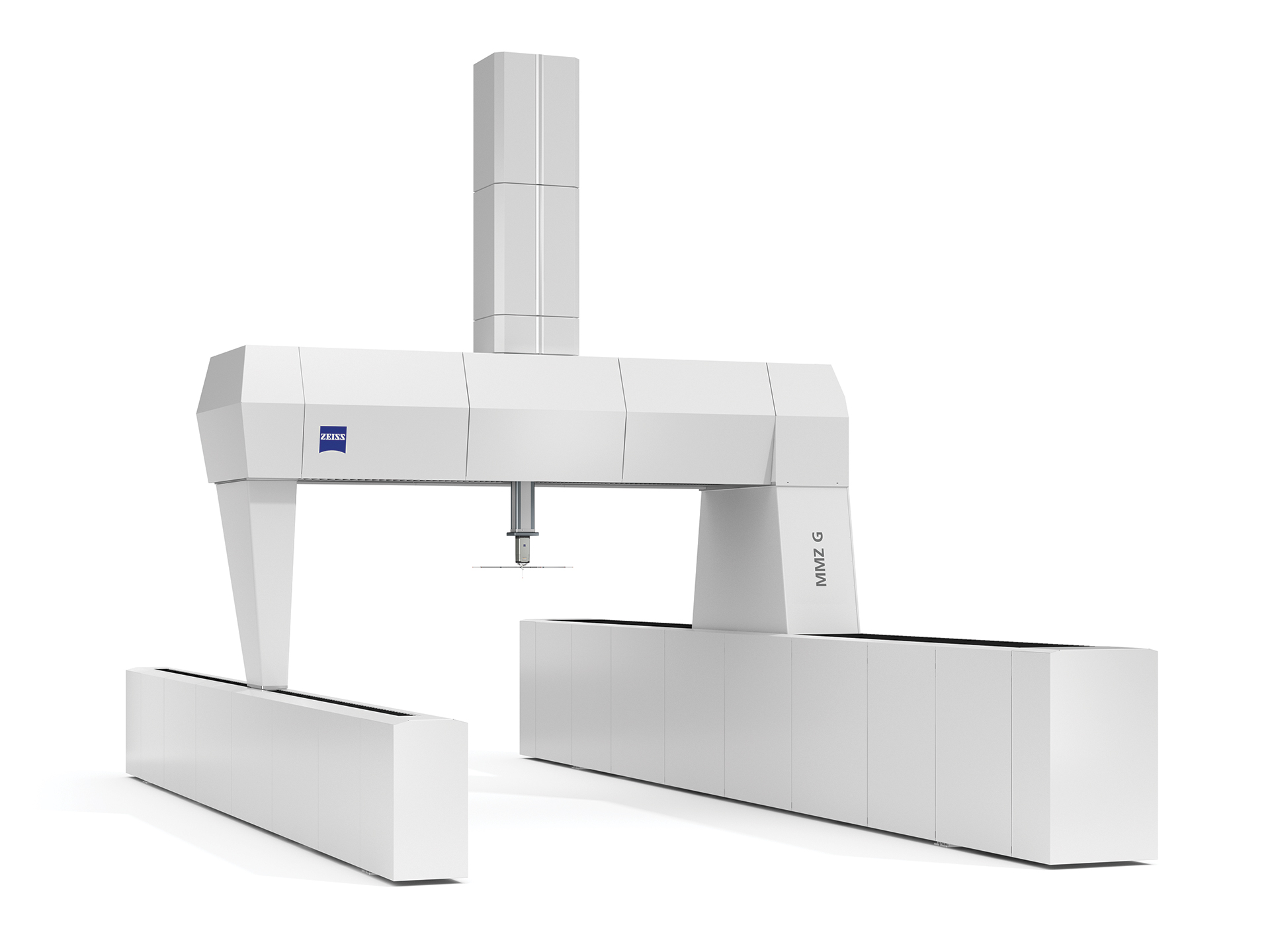

The largest CMM in the ZEISS portfolio
ZEISS MMZ G can be configured in more than 200 different combinations
Technical comparison
![ZEISS MMZ 1 table]({"xsmall":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.100.100.1675,694,5863,4882.file/mmz-1-table_full.png","small":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.360.360.1675,694,5863,4882.file/mmz-1-table_full.png","medium":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.768.768.1675,694,5863,4882.file/mmz-1-table_full.png","large":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.1024.1024.1675,694,5863,4882.file/mmz-1-table_full.png","xlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.1280.1280.1675,694,5863,4882.file/mmz-1-table_full.png","xxlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.1440.1440.1675,694,5863,4882.file/mmz-1-table_full.png","max":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/mmz-1-table/mmz-1-table_full.png/_jcr_content/renditions/original.image_file.1920.1920.1675,694,5863,4882.file/mmz-1-table_full.png"} "ZEISS MMZ 1 table")
|

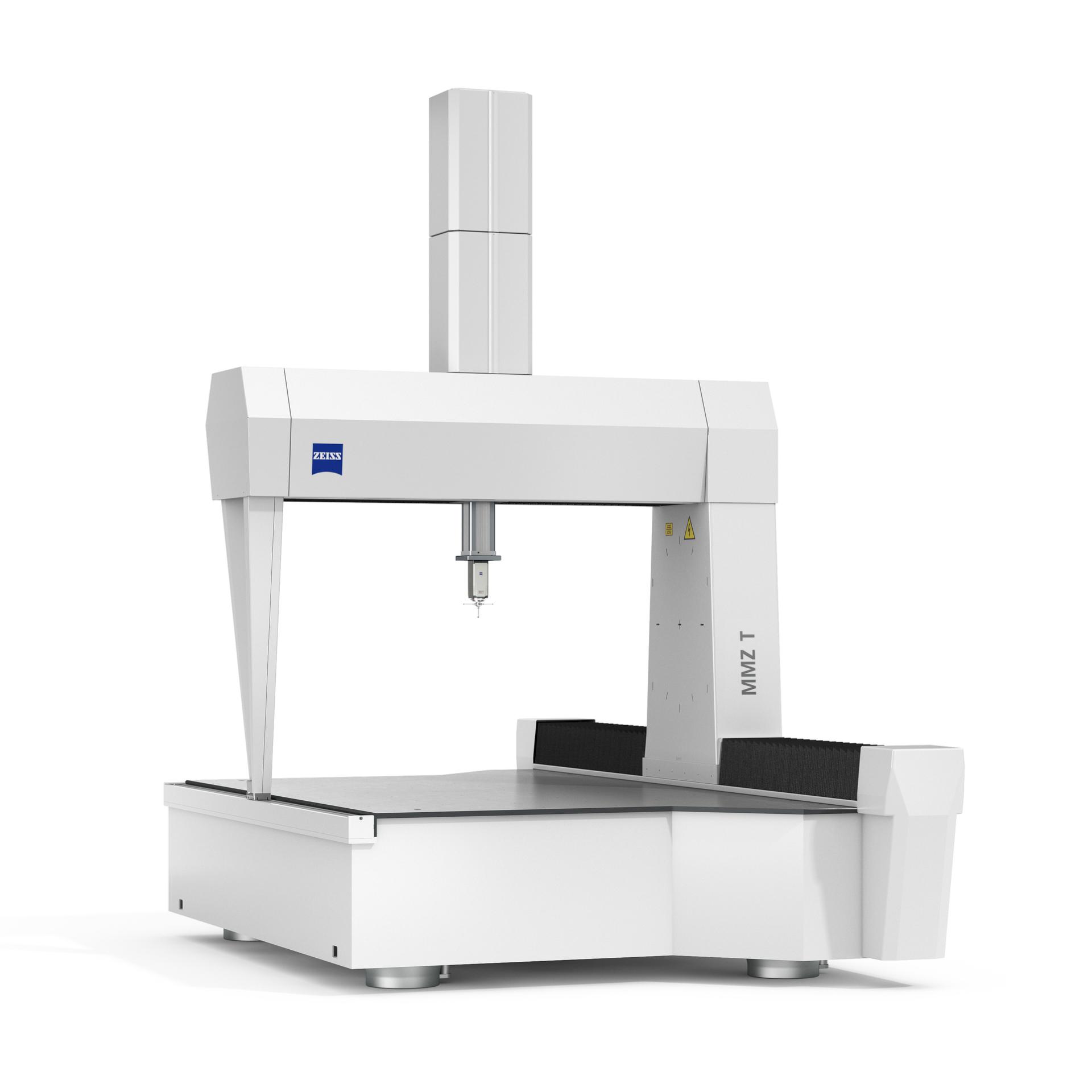

![ZEISS MMZ T]({"xsmall":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-t-perspective.jpg/_jcr_content/renditions/original.image_file.100.100.23,0,1951,1928.file/zeiss-large-cmm-mmz-t-perspective.jpg","small":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-t-perspective.jpg/_jcr_content/renditions/original.image_file.360.360.23,0,1951,1928.file/zeiss-large-cmm-mmz-t-perspective.jpg","medium":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-t-perspective.jpg/_jcr_content/renditions/original.image_file.768.768.23,0,1951,1928.file/zeiss-large-cmm-mmz-t-perspective.jpg","large":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-t-perspective.jpg/_jcr_content/renditions/original.image_file.1024.1024.23,0,1951,1928.file/zeiss-large-cmm-mmz-t-perspective.jpg","xlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-t-perspective.jpg/_jcr_content/renditions/original.image_file.1280.1280.23,0,1951,1928.file/zeiss-large-cmm-mmz-t-perspective.jpg","xxlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-t-perspective.jpg/_jcr_content/renditions/original.image_file.1440.1440.23,0,1951,1928.file/zeiss-large-cmm-mmz-t-perspective.jpg","max":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-t-perspective.jpg/_jcr_content/renditions/original.image_file.1920.1920.23,0,1951,1928.file/zeiss-large-cmm-mmz-t-perspective.jpg"} "ZEISS MMZ T")
|
![ZEISS MMZ M]({"xsmall":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-m.jpg/_jcr_content/renditions/original.image_file.100.100.41,0,1969,1928.file/zeiss-large-cmm-mmz-m.jpg","small":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-m.jpg/_jcr_content/renditions/original.image_file.360.360.41,0,1969,1928.file/zeiss-large-cmm-mmz-m.jpg","medium":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-m.jpg/_jcr_content/renditions/original.image_file.768.768.41,0,1969,1928.file/zeiss-large-cmm-mmz-m.jpg","large":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-m.jpg/_jcr_content/renditions/original.image_file.1024.1024.41,0,1969,1928.file/zeiss-large-cmm-mmz-m.jpg","xlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-m.jpg/_jcr_content/renditions/original.image_file.1280.1280.41,0,1969,1928.file/zeiss-large-cmm-mmz-m.jpg","xxlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-m.jpg/_jcr_content/renditions/original.image_file.1440.1440.41,0,1969,1928.file/zeiss-large-cmm-mmz-m.jpg","max":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-m.jpg/_jcr_content/renditions/original.image_file.1920.1920.41,0,1969,1928.file/zeiss-large-cmm-mmz-m.jpg"} "ZEISS MMZ M")
|
![ZEISS MMZ G]({"xsmall":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-g-perspective.jpg/_jcr_content/renditions/original.image_file.100.100.47,0,1974,1927.file/zeiss-large-cmm-mmz-g-perspective.jpg","small":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-g-perspective.jpg/_jcr_content/renditions/original.image_file.360.360.47,0,1974,1927.file/zeiss-large-cmm-mmz-g-perspective.jpg","medium":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-g-perspective.jpg/_jcr_content/renditions/original.image_file.768.768.47,0,1974,1927.file/zeiss-large-cmm-mmz-g-perspective.jpg","large":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-g-perspective.jpg/_jcr_content/renditions/original.image_file.1024.1024.47,0,1974,1927.file/zeiss-large-cmm-mmz-g-perspective.jpg","xlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-g-perspective.jpg/_jcr_content/renditions/original.image_file.1280.1280.47,0,1974,1927.file/zeiss-large-cmm-mmz-g-perspective.jpg","xxlarge":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-g-perspective.jpg/_jcr_content/renditions/original.image_file.1440.1440.47,0,1974,1927.file/zeiss-large-cmm-mmz-g-perspective.jpg","max":"https://www.zeiss.com.sg/content/dam/iqs/r/systems/cmm/large-cmms/zeiss-large-cmm-mmz-g-perspective.jpg/_jcr_content/renditions/original.image_file.1920.1920.47,0,1974,1927.file/zeiss-large-cmm-mmz-g-perspective.jpg"} "ZEISS MMZ G")
|
|
|---|---|---|---|---|
|
Specifications |
|
|
|
|
|
Type |
Bridge |
Bridge |
Large Bridge |
Large Bridge |
|
Sizes |
20/30/15 |
X: 21 |
X: 20; 30 |
More than 200 possible combinations |
|
Compatible probehead |
VAST XT gold, VAST gold, VAST XTR, |
VAST XT gold, VAST gold, VAST XTR |
VAST XT gold, VAST gold, VAST XTR |
VAST XT gold, VAST gold, VAST XTR |
|
Accuracy |
3,6 + L/250 µm |
From 2,4 + L/400 µm |
From 2,2 + L/400 µm |
From 2,2 + L/400 µm |
|
Max. workpiece weight |
5 t |
10 t |
Depending on foundation thickness |
Depending on foundation thickness |
|
Foundation needed |
No* |
No* |
Yes |
Yes |
*if the floor can carry the load
