ZEISS MMZ G

Bridge-type CMM for large workpieces

The large bridge-type machines in the ZEISS MMZ G line meet the highest demands: they feature the largest measuring range of all measuring machines offered by ZEISS and offer you unparalleled accuracy. This makes the ZEISS MMZ G ideal for checking complex, extremely large workpieces, especially those with tight tolerances.

High accuracy for extremely large workpieces
Stable mechanical design and robust roller bearings
ZEISS VAST navigator for exceptional scanning performance

Features

ZEISS MMZ G measuring machines are used by manufacturers of printing machines, wind turbines, and in mechanical engineering.

Minimized subsequent costs
Durable thanks to the robust roller bearings
Minimal expenses for worn parts because of transverse force-free drives
Extremely sturdy because of its very stable mechanical design
Ergonomically-correct work
All-sided view of the measuring range
Walk-in measuring area for effective analysis directly on the workpiece
Mobile data station for direct programming on the workpiece
Exceptional scanning performance
ZEISS VAST navigator to quickly calibrate, scan and increase precision
ZEISS VAST performance to increase measuring throughput
REACH CFX 3 MMZ stylus extensions for measuring deep boreholes (1,200 mm)

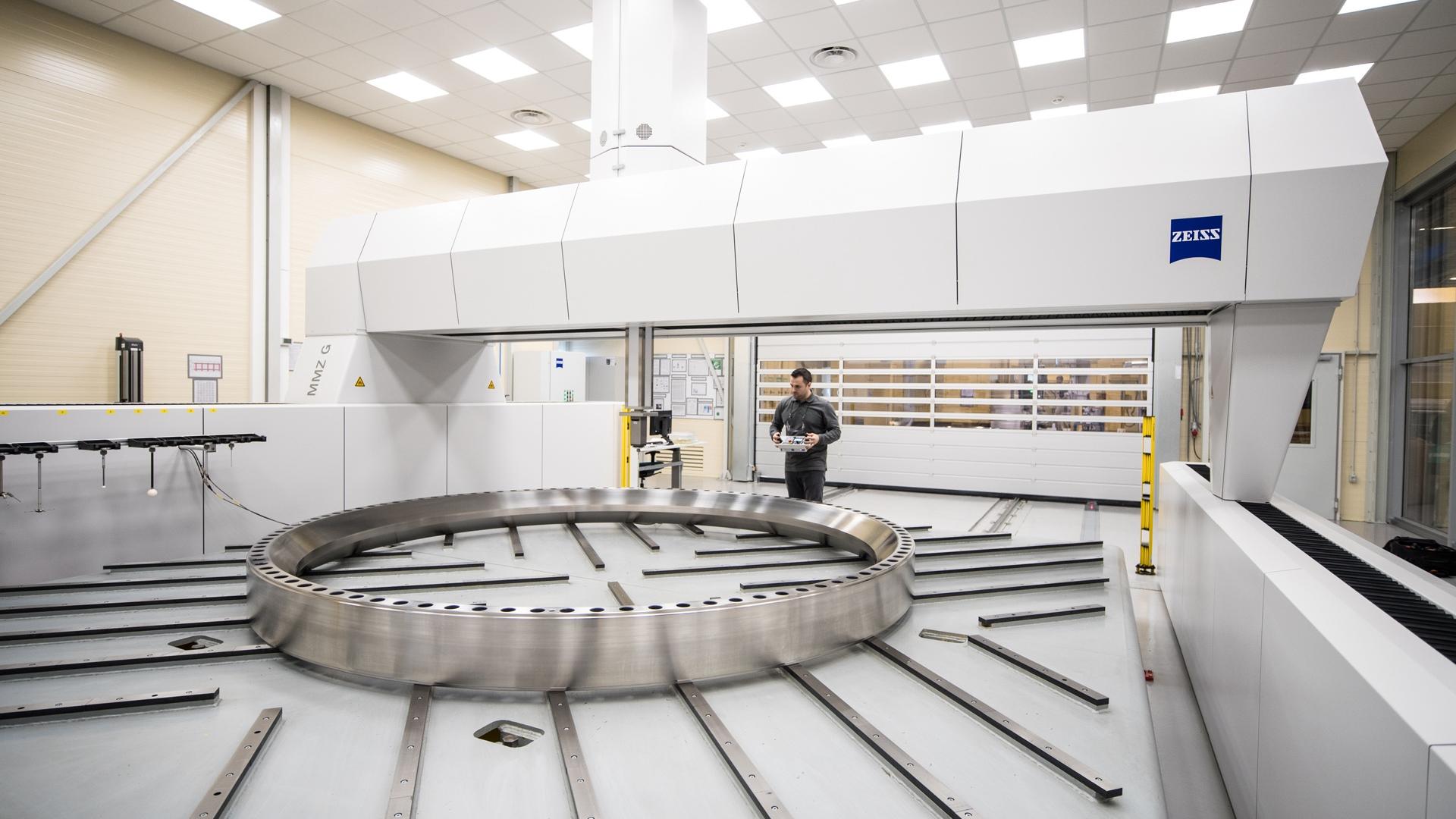

Checking extremely large workpieces

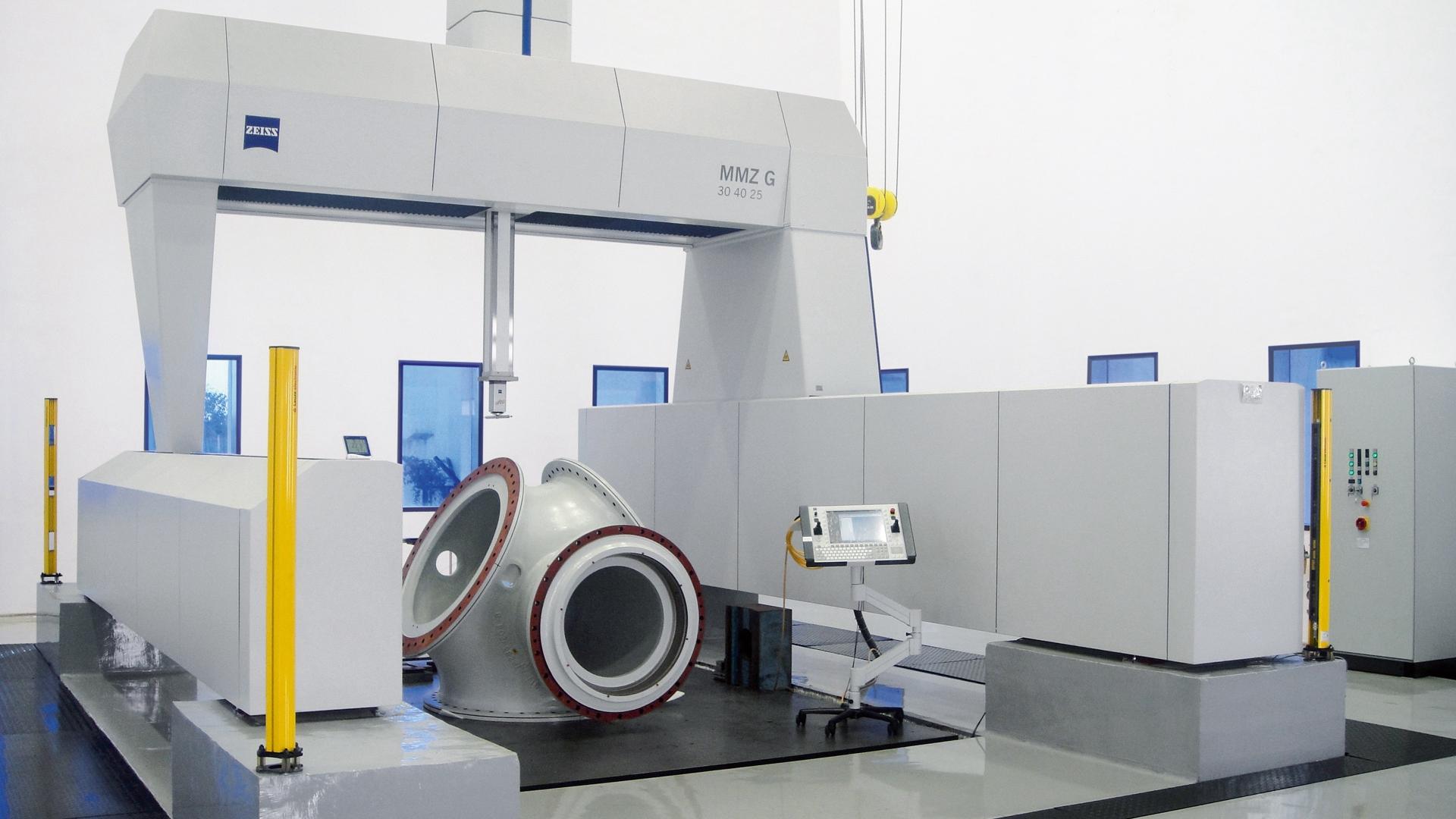

ZEISS MMZ G at PMT Machines Limited

Measure extremely heavy workpieces dependably

Resistant to harsh environmental conditions for minimal demands on the measuring room
Large bearing clearances and a stable bridge design for an exceptional scanning performance
Workpiece weight limited only by the thickness of the foundation

Having the ZEISS CMM made it possible to edge out the competition and keep our big vision alive.

Michael Medwid President at Three-M

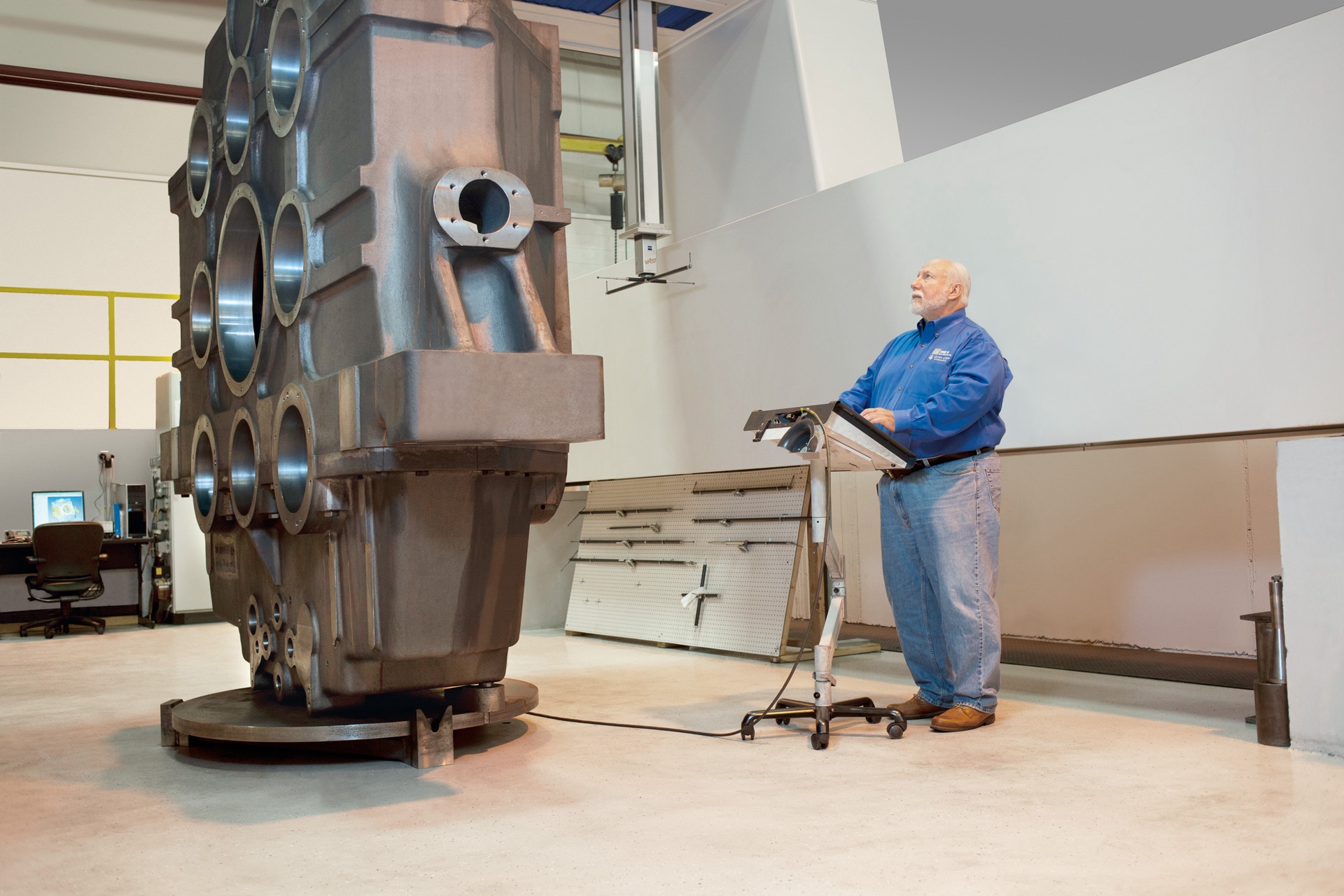

Three-M Tool and the ZEISS MMZ G

Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Technical data for ZEISS MMZ G


Length measurement error	MPE_E150	from 2.2 + L/400 μm
Single stylus probing error	MPE_PFTU	from 2.0 μ
Scanning probing error	MPE_THP/tau	from 2.8 μ / 62 s
Form measuring error	MPE RONt	from 2.0 μm
